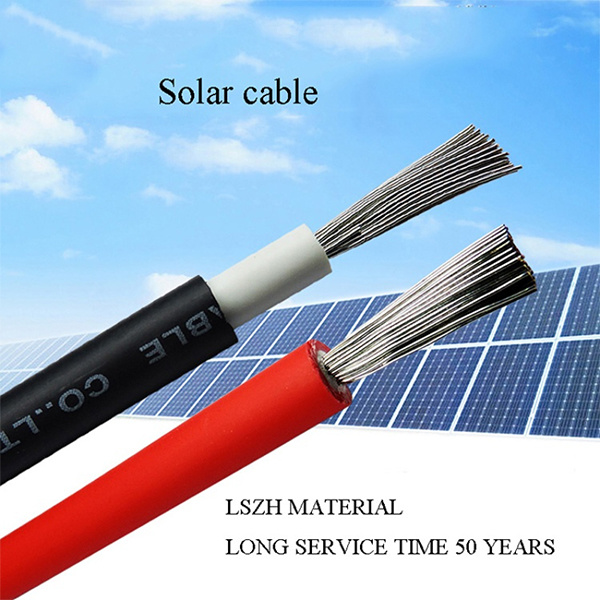

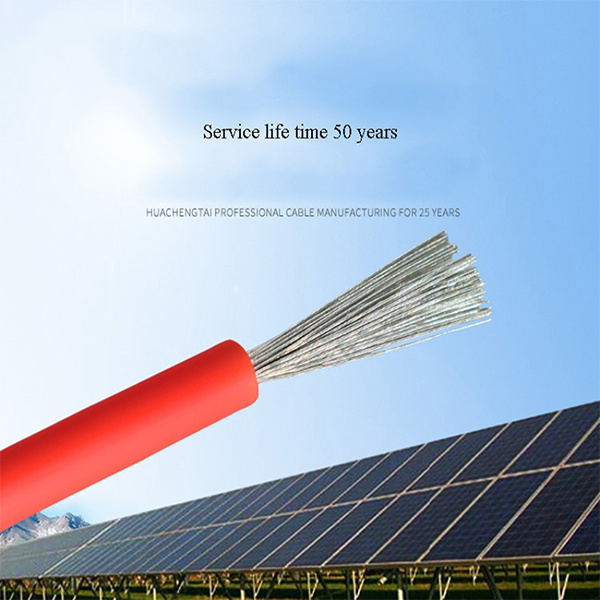

Solar Cables

Widely used for electrical installation of indoor and outdoor solar energy equipment.

Categories：

Renewable Energy Cables

Email：info@zmlcable.com

Application
Widely used for electrical installation of indoor and outdoor solar energy equipment.
Features: Low smoke and halogen-free, excellent cold resistance, UV resistance, ozone resistance, and climate resistance. Flame retardant, resistant to cutting marks, and resistant to penetration.
Cable protection level II.
Environmental temperature: -40 ℃~+90 ℃; Maximum temperature of the conductor: 120 ℃ (allowing for a short circuit temperature of 200 ℃ within 5 seconds);
Rated voltage: AC0.6/1kV DC1.8kV
Design lifespan: 25 years

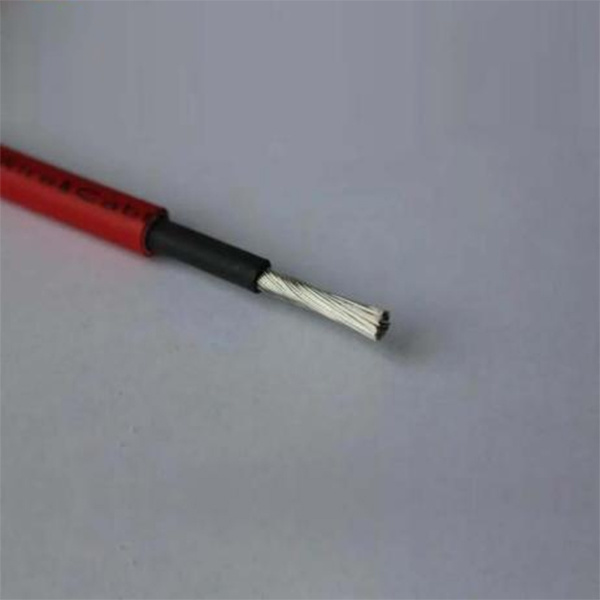

Construction

Conductors: Tinned copper wire 2.5, 4, 6, 10, 16mm2 PV1-F 18. 16, 14, 12, 10, 8, 6, 4, 2mm2 PV wire
Insulation: The thickness of the low smoke halogen-free material is greater than 0.5mm and meets the limit value given by the customer.
Sheath: Low smoke halogen-free material thickness>0.5mm
Using 150 ℃ halogen-free flame retardant photovoltaic cable irradiation insulation material (because the highest temperature is 120 ℃, it must be higher than it), it is mainly made of halogen-free non-toxic modified polyolefin resin as the main raw material, with the addition of halogen-free non-toxic flame retardants, heat stabilizers, smoke suppressants, mold inhibitors and other additives, without halogens (especially emphasized in Europe), heavy metals, and phosphorus elements. And it complies with ROHS, with little change in insulation resistance after immersion in water.

PV1-F

Nominal Area of Conductor mm²	Conductor	Insulation		sheath
Nominal Area of Conductor mm²	NO./Diameter mm	Thickness mm	Diameter mm	Thickness mm	Over diameter mm
2.5	51/0.254	0.78	3.60	1.10	5.80
4.0	56/0.300	0.84	4.20	1.10	6.40
6.0	84/0.300	0.90	4.90	1.20	7.30
10.0	84/0.400	0.90	5.90	1.20	8.30
16.0	126/0.400	1.00	7.00	1.30	9.60

PV1-F Cable current-carrying capacity

Nominal Area of Conductor	Installation Type
	Single core cable laid in free circulation of air		Single core cable laid on the ground surface		Parallel cable on the ground surface
mm²	A	A		A
2.5	40	39		33
4	55	52		44
6	70	67		57
10	98	93		79
16	132	125		107

Key words:

Solar Cable
