Rubber Sheath Flexible Cable
Rubber sheathed cable insulation layer and sheath are often made of natural rubber, styrene-butadiene rubber, ethylene-propylene rubber, etc. In addition to satisfying insulation properties and physical and mechanical properties, it also requires aging resistance and abrasion resistance. Some products require oil resistance and flame retardancy.
Categories：
Rubber Sheath Flexible Cable
Email：info@zmlcable.com
Rubber sheathed cable insulation layer and sheath are often made of natural rubber, styrene-butadiene rubber, ethylene-propylene rubber, etc. In addition to satisfying insulation properties and physical and mechanical properties, it also requires aging resistance and abrasion resistance. Some products require oil resistance and flame retardancy.
These cables are designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment. Also for use in drainage and water treatment, cold environments and severe industrial environments.
Standard
IEC 60245 Rubber insulated cables - Rated voltages up to and including 450/750 V
Temperature Rating:
Fixed: -30°C to +60°C
Fixed protected installations: +85°C
Flexed: -15°C to +60°C

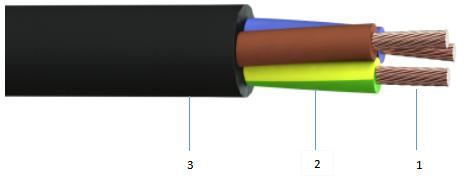

Construction
Conductor: Bare or tinned copper conductor, flexible class 5
Separator: Polyester tape of paper, optional
Insulation: Silicone rubber compound or rubber compound based on ethylene vinyl acetate or ordinary ethylene - propylene rubber compound or equivalent materials.
Filler: Compound based on cross - linked or uncross - linked rubber, or natural or synthetic textiles, or paper, optional
Outer sheath: Cross - linked rubber compound, polychloroprene compound or other equivalent synthetic elastomer
Specification:
IEC 60245 Rubber Insulated Cables - Rated Voltages up to and Including 450/750 V
DIN VDE 0282 Cables of Rated Voltages up to and Including 450/750 V and Having Cross - linked Insulation
EN 50525-2-21 Electric Cables — Low Voltage Energy Cables of Rated Voltages up to and Including 450/750 V (U0/U) Part 2-21: Cables for General Applications — Flexible Cables with Cross - linked Elastomeric Insulation
Note: We also can produce based on other international standards, such as HD、BS、NFC etc.
Characteristics
Rated voltage: U0/U 300/500 V or 450/750 V
Normal operating temperature:
General purpose cables: 60°C
Water resistant cables: 60°C
Heat resistant cables: 90°C
Heat resistant EVA cables: 110°C
Minimum bending radius:
Fixed: 4 x overall diameter
Flexed: 6 x overall diameter
Note: D is overall diameter of cable.
These cables retain their high flexibility also under the influence of ozone, light, oxygen, protective gases, oils and gasoline. Duel to their robust construction, they are also resistant to cold, same as to heat and fire. Suitable for outdoor use, also in dry and damp conditions.
|
General purpose cables |
|
|
H05RR-F |
Light rubber sheathed and insulated flexible cable |
|
H05RN-F |
Light rubber sheathed and insulated flexible cable |
|
H07RN-F |
Heavy rubber sheathed and rubber insulated flexible cable |
|
60245 IEC 53 |
Ordinary tough rubber sheathed cord |
|
60245 IEC 57 |
Ordinary polychloroprene or other equivalent synthetic elastomer |
|
60245 IEC 66 |
Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable |
|
60245 IEC 58 for circular cable |
Polychloroprene or equivalent synthetic elastomer sheathed cable for decorative chains |
|
60245 IEC 58f for flat cable |
Polychloroprene or equivalent synthetic elastomer sheathed cable for decorative chains |
|
Heat resistant cables |
|
|
H07ZZ-F |
Halogen free flexible power supply |
|
H05BB-F |
EPDM insulated equipment wiring |
|
H07BB-F |
EPDM insulated equipment wiring |
|
H05BN4-F |
High temperature power supply |
|
H07BN4-F |
High temperature power supply |
|
H05BQ-F |
Polyurethane sheathed flexible power cable for construction sites |
|
H07BQ-F |
Polyurethane sheathed flexible power cable for construction sites |
|
Water resistant cables |
|
|
H07RN8-F |
Submersible cable for temporary use to a depth of 10m |
|
Heat resistant EVA cables |
|
|
H05GG-F |
EVA insulated domestic appliance wiring to 110°C |
|
H05GGH2-F |
EVA insulated domestic appliance wiring to 110°C |
|
Welding cables |
|
|
H01N2-D |
Welding cable including more flexible variant |
|
H01N2-E |
Welding cable including more flexible variant |
|
HAR Code |
IEC |
Description |
Voltage Design |
Cores |
|
H05RR-F |
60245IEC 53(YZ)/YZ |
Ordinary rubber sheathed cord |
300/500V |
2~5 |
|
H05RN-F |
60245 IEC 57(YZW)/YZW |
Ordinary polychloroprene or |
300/500V |
2~5 |
|
H07RN-F |
60245 IEC 66(YCW)/YC |
Heavy polychloroprene other equivalent |
450/750V |
|
|
H01N2-D |
60245 IEC 81(YH) |
Rubber sheathed arc-welding electrode cable |
100/100V |
10-120 |
|
60245 |
polychloroprene or other equivalent synthetic |
100/100V |
10-120 |
245IEC 66 (YZ / YZW) Heavy Type Rubber Flexible Cable 450/750 V
|
No. of Cores×Nominal Area of Conductor |
Insulation thickness mm |
Sheath thickness mm |
Approximate Outer Diameter mm |
Approximate weight kg/km |
|
2×1.5 |
0.8 |
1.5 |
11.0 |
167 |
|
2×2.5 |
0.9 |
1.7 |
13.1 |
241 |
|
2×4 |
1.0 |
1.8 |
15.1 |
326 |
|
2×6 |
1.0 |
2.0 |
16.8 |
415 |
|
2×10 |
1.2 |
3.1 |
22.6 |
742 |
|
2×16 |
1.2 |
3.3 |
25.7 |
990 |
|
2×25 |
1.4 |
3.6 |
30.7 |
1434 |
|
2×35 |
1.4 |
3.9 |
34.6 |
1854 |
|
2×50 |
1.6 |
4.3 |
40.1 |
2520 |
|
2×70 |
1.6 |
4.6 |
45.1 |
3255 |
|
2×95 |
1.8 |
5.0 |
51.0 |
4218 |
|
3×1.5 |
0.8 |
1.6 |
11.9 |
200 |
|
3×2.5 |
0.9 |
1.8 |
14.0 |
284 |
|
3×4 |
1.0 |
1.9 |
16.2 |
390 |
|
3×6 |
1.0 |
2.1 |
18.0 |
497 |
|
3×10 |
1.2 |
3.3 |
24.2 |
886 |
|
3×16 |
1.2 |
3.5 |
27.6 |
1197 |
|
3×25 |
1.4 |
3.8 |
33.0 |
1743 |
|
3×35 |
1.4 |
4.1 |
37.1 |
2254 |
|
3×50 |
1.6 |
4.5 |
42.9 |
3062 |
|
3×70 |
1.6 |
4.8 |
48.3 |
3981 |
|
3×95 |
1.8 |
5.3 |
54.0 |
5088 |
|
3×120 |
1.8 |
5.6 |
60.0 |
6323 |
|
3×150 |
2.0 |
6.0 |
66.0 |
7722 |
|
4×1.5 |
0.8 |
1.7 |
13.1 |
246 |
|
4×2.5 |
0.9 |
1.9 |
15.5 |
352 |
|
4×4 |
1.0 |
2.0 |
17.9 |
483 |
|
4×6 |
1.0 |
2.3 |
20.0 |
623 |
|
4×10 |
1.2 |
3.4 |
26.5 |
1082 |
|
4×16 |
1.2 |
3.6 |
30.1 |
1458 |
|
4×25 |
1.4 |
4.1 |
36.6 |
2183 |
|
4×35 |
1.4 |
4.4 |
41.1 |
2822 |
|
4×50 |
1.6 |
4.8 |
47.5 |
3834 |
|
4×70 |
1.6 |
5.2 |
54.0 |
5063 |
|
4×95 |
1.8 |
5.9 |
60.0 |
6423 |
|
4×120 |
1.8 |
6.0 |
66.0 |
7872 |
|
4×150 |
2.0 |
6.5 |
73.0 |
9695 |
|
5×1.5 |
0.8 |
1.8 |
14.4 |
298 |
|
5×2.5 |
0.9 |
2.0 |
17.0 |
426 |
|
5×4 |
1.0 |
2.2 |
19.9 |
597 |
|
5×6 |
1.0 |
2.5 |
22.2 |
769 |
|
5×10 |
1.2 |
3.6 |
29.1 |
1314 |
|
5×16 |
1.2 |
3.9 |
33.3 |
1793 |
|
5×25 |
1.4 |
4.4 |
40.4 |
2675 |
|
3×2.5+1×1.5 |
0.9/0.8 |
2.0 |
15.2 |
335 |
|
3×4+1×2.5 |
1.0/0.9 |
2.0 |
17.4 |
453 |
|
3×6+1×4 |
1.0/1.0 |
2.2 |
19.4 |
583 |
|
3×10+1×6 |
1.2/1.0 |
3.0 |
24.6 |
940 |
|
3×16+1×6 |
1.2/1.0 |
3.5 |
28.3 |
1276 |
|
3×25+1×10 |
1.4/1.2 |
4.0 |
34.4 |
1912 |
|
3×35+1×10 |
1.4/1.2 |
4.0 |
37.3 |
2323 |
|
3×50+1×16 |
1.6/1.2 |
5.0 |
44.7 |
3340 |
|
3×70+1×25 |
1.6/1.4 |
5.0 |
49.8 |
4291 |
|
3×95+1×35 |
1.8/1.4 |
5.0 |
55.1 |
5414 |
|
3×120+1×35 |
1.8/1.4 |
5.0 |
58.8 |
6318 |
|
3×150+1×50 |
2.0/1.6 |
5.0 |
64.5 |
7726 |
