Copper clad steel wire (CCS) combines the high tensile strength of steel as its core and the conductivity properties of copper as its outer layer. The core material is usually low carbon steel and is typically used as either grounding wire or the inner conductor of coaxial cables.
Categories：
Bare Conductors
Email：info@zmlcable.com
CCS:（copper clad steel strand）:
Copper clad steel wire (CCS) combines the high tensile strength of steel as its core and the conductivity properties of copper as its outer layer. The core material is usually low carbon steel and is typically used as either grounding wire or the inner conductor of coaxial cables.
Copper Clad Steel Conductor CCS Wire IEC Standard
Copper Clad Steel Conductor CCS Wire IEC Standard
Shape of conductor: circular and sectional
Conductor Material: Copper clad steel
Insulation: N/A
Standard: IEC
APPLICATIONS:
Copper Clad steel wire and strand combines the electrical characteristics of copper with the mechanical properties of steel. Often used for buried ground grid systems, overhead ground wire and messenger wire, it can resist mechanical damage during installation, as well as electrical damage during a fault condition. Copper Clad steel has virtually no scrap value, and is extremely difficult to cut with traditional wire and cable cutting tools, greatly reducing the potential of theft.
CONSTRUCTION :
Copper Clad Steel Wire

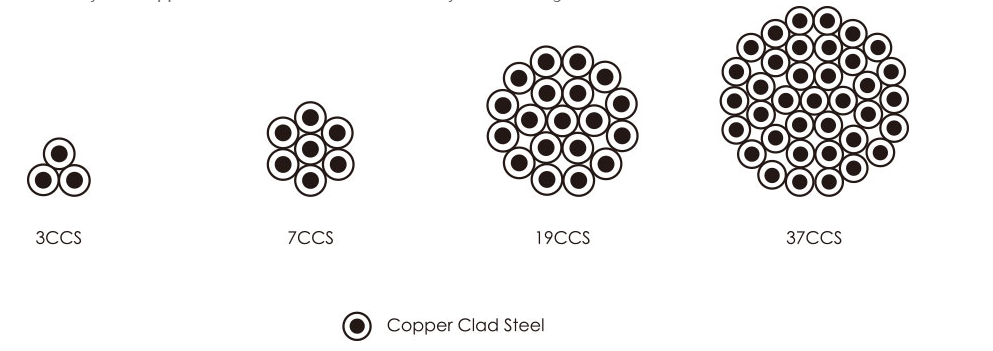

Generally, the Copper Clad Steel conductor is formed by the following construction:
Copper Clad Steel CCS Conductor IEC Standard
|
Nominal Sectional Area mm² |
Structure Stock Diameter mm |
Area mm² |
Breaking Load kg |
D.C．Resistance Ω/km
|
Line Quality Kg/km
|
||||
|
40HS |
30HS |
30EHS |
40% |
30% |
30% |
40% |
|||
|
320 |
19/4.62 |
318.71 |
22788 |
25206 |
30350 |
0.1399 |
0.1865 |
2634.0 |
2660.8 |
|
250 |
19/4.12 |
252.71 |
18849 |
20788 |
25188 |
0.1764 |
0.2352 |
2087.9 |
2110.2 |
|
200 |
19/3.67 |
200.45 |
15599 |
17118 |
20797 |
0.2225 |
0.2966 |
1656.3 |
1674.2 |
|
160 |
19/3.26 |
158.97 |
12873 |
14079 |
17096 |
0.2805 |
0.3740 |
1313.6 |
1327.2 |
|
120 |
19/2.91 |
126.06 |
10609 |
11567 |
13884 |
0.3537 |
0.4715 |
1041.7 |
1052.6 |
|
150 |
7/5.19 |
148.06 |
10120 |
11240 |
13349 |
0.3000 |
0.4000 |
1218.7 |
1231.5 |
|
120 |
7/4.62 |
117.42 |
8396 |
9285 |
11181 |
0.3783 |
0.5043 |
966.41 |
976.53 |
|
90 |
7/4.12 |
93.097 |
6954 |
7661 |
9280 |
0.4771 |
0.6359 |
766.25 |
774.29 |
|
70 |
7/3.67 |
73.871 |
5747 |
6309 |
7661 |
0.6014 |
0.8019 |
608.06 |
614.46 |
|
60 |
7/3.26 |
58.561 |
4745 |
5189 |
6300 |
0.7586 |
1.0109 |
482.02 |
487.07 |
|
50 |
7/2.91 |
46.439 |
3908 |
4261 |
5116 |
0.9564 |
1.2750 |
382.16 |
386.18 |
|
35 |
7/2.59 |
36.826 |
3230 |
3519 |
4171 |
1.2061 |
1.6077 |
303.14 |
306.26 |
|
50 |
3/4.62 |
50.322 |
3798 |
4201 |
5380 |
0.8809 |
1.1743 |
413.41 |
417.73 |
|
40 |
3/4.12 |
39.903 |
3145 |
3465 |
4424 |
1.1106 |
1.4807 |
327.84 |
331.26 |
|
30 |
3/3.67 |
31.645 |
2600 |
2854 |
3593 |
1.4007 |
1.8672 |
259.98 |
262.66 |
|
25 |
3/3.26 |
25.097 |
2145 |
2347 |
2849 |
1.7662 |
2.3544 |
206.11 |
208.34 |
|
20 |
3/2.91 |
19.903 |
1768 |
1928 |
2326 |
2.2271 |
2.9690 |
163.55 |
165.19 |
|
15 |
3/2.59 |
15.781 |
1461 |
1592 |
1887 |
2.8082 |
3.7436 |
129.62 |
130.99 |
