ACS

The covered aluminum steel wire for compression, internationally known as Alumoweld or ACS, is a wire of high resistance whose cover is carried through an extrusion process, that adheres the aluminum by pressure and heat.

Categories：

Bare Conductors

Email：info@zmlcable.com

ACS Alumoweld Aluminium Clad Steel Wire

Shape of conductor: circular and sectional

Conductor Material: Aluminum Clad Steel

Insulation: N/A

Standard: IEC 61232

ACS APPLICATION

ACS– The full name: Aluminum Clad Steel Wire. The aluminum clad steel wire is widely used in long-span transmission line, coastal areas and island as well as other hot and humid regions, salt fog regions and heavily polluted regions where the high corrosion resistance strand is needed.
It is used as the core of ACSR/AW, overhead ground conductor, extra high voltage overhead conductor, optical fiber composite overhead ground line, self-damping conductor line, bare overhead conductor, OPGW, ground wire, messenger wire, guy wire formed wire for protecting, terminating and splicing transmission and distribution lines, fence, barber wire and hardware, etc.

FEATURES :

Aluminum clad steel wire is perfectly combined of aluminum and steel core, and there will be no flaking off during the heat treatment or mechanical workout. The aluminum clad steel wire is the best new bimetallic wire instead of pure copper wire.
A high strength steel wire with a 25% thick cross-section ratio of aluminum cladding creates a high electrical conductivity, highly corrosive resistant, and a thermal stability for high temperature operation and all with a lighter weight.

STANDARD :

ASTM B416-American Standard

DIN 48201-German Standards

IEC 61232-International Electrotechnical Commission International Standards

ASTM B502-93-American Standard of Aluminum Clad Steel Wires

AS 1222.2-92-Australia Standard of Aluminum Clad Wires

ASTM B 415-02 1, Tensile Requirement

ACS Conductor IEC 61232 Standard

Class			20SA			27SA		30SA		40SA
Type			A		B	-		-		-
Tolerance on diameter		Ø ≥ 2,67 mm	± 1,5%		± 1,5%	± 1,5%		± 1,5%		± 1,5%
		Ø < 2,67 mm	± 0,04 mm		± 0,04 mm	± 0,04 mm		± 0,04 mm		± 0,04 mm
Minimum thickness of aluminium clad (% of radius)			8% if Ø < 1,80 mm			14%		15%		25%
			10% if Ø ≥ 1,80 mm
Nominal density at 20°C (g/cm³)			6,59		6,53	5,91		5,61		4,64
Resistivity at 20°C max. (nΩ x m)			84,80		84,80	63,86		57,47		43,10
Conductivity (IACS)			20,3%		20,3%	27%		30%		40%
Final modulus of elasticity (GPa)			162		155	140		132		109
Coefficient of linear expansion (K-1)			13,0 x 10-6		12,6 x 10-6		13,4 x 10-6		13,8 x 10-6	15,5 x 10-6
Constant-mass temperature coefficient of resistance (K-1)			0,0036		0,0036	0,0036		0,0038		0,0040
MECHANICAL PROPERTIES
class		type	nominal diameter (mm)		min. tensile strength (N/mm²)	min. stress at 1% extension		elongation		torsion test (min. twists)
20SA		A	1,24	3,25	1340	1200		1,5%		20
			3,26	3,45	1310	1180
			3,46	3,65	1270	1140
			3,66	3,95	1250	1100
			3,96	4,10	1210	1100
			4,11	4,40	1180	1070
			4,41	4,60	1140	1030
			4,61	4,75	1100	1000
			4,76	5,50	1070	1000
		B	1,24	5,50	1320	1100
27SA	–	2,50	5,00	1080	800	27SA
27SA	–	2,50	5,00	1080	800	27SA
40SA	–	2,50	5,00	680	500	40SA

GUY WIRE(galvanized steel guy wire):

Galvanized Steel Guy Wire which Concentric-lay stranded conductors made of Zinc-coated Steel wires. Commonly used for overhead ground/shield wire, guys and messengers, and for steel core in ACSR conductors.

GSW-Galvanized Steel Wire Conductor IEC 61089 Standard

Shape of conductor: circular and sectional

Conductor Material: Galvanized Steel Wire Stranded

Insulation: N/A

Standard: IEC 61089

GSW WIRE APPLICATION:

Galvanized steel wire also names GSW Wire ,Messenger Wire, Overhead Ground or Stay Wire, Guy Wire, GI Wire
Galvanized steel strand wire can be used as ground wire of overhead line, but also can be used as structural cable, supporting cable, cable, block cable and cable reinforcement core. It is made of wire twisted together. There are mainly ASTM standards, BS standards, IEC standards and other production standards. It is widely used in energy, construction, bridge, water conservancy and geotechnical engineering.

STANDARD :

ASTM A475, ASTM A363, IEC 61089 BS183:1972 and ect.Other International Standard.

CONSTRUCTION :

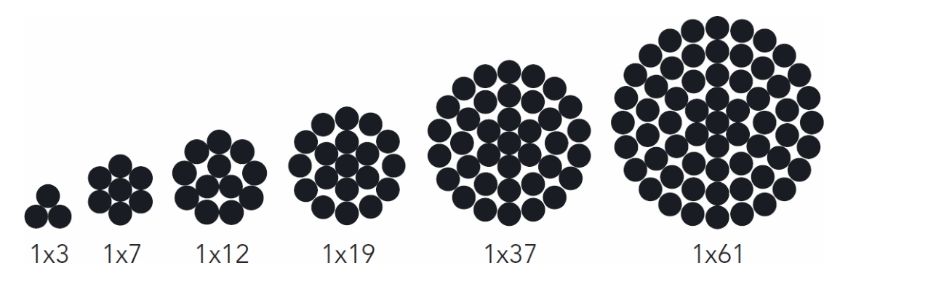

1.The single wires are concentrically stranded and wrapped helically around a central wire.
2.Zinc-coated grade of steel strand wire /guy wire : Class A ,Class B and class C.
Concentrically stranded Galvanized steel wire strand available in class “A”, “B” and “C” galvanizing, “A” being the least heavy and “C” being the most heavy.

GSW Wire IEC 61089 Standard

Code No.	Section Area	No. / Dia of Wire	Approx. Overall Dia.	Approx. Weight	Breaking Load
	Section Area	No. / Dia of Wire	Approx. Overall Dia.	Approx. Weight	S1A	S1B	S2A	S3A
	mm²	No./mm	mm	kg/km	kN	kN	kN	kN
4	27.1	7/2.22	6.66	213.3	36.3	33.6	39.3	43.9
6.3	42.7	7/2.79	8.36	335.9	55.9	51.7	60.2	67.9
10	67.8	7/3.51	10.53	553.2	87.4	80.7	93.5	103.0
12.5	84.7	7/3.93	11.78	666.5	109.3	100.8	116.9	128.8
16	108.4	7/4.44	13.32	853.1	139.9	129.0	199.7	164.8
16	108.4	19/2.70	13.48	857.0	142.1	131.2	152.9	172.4
25	169.4	19/3.37	16.85	1339.1	218.6	201.6	238.9	262.6
40	271.1	19/4.26	21.31	2141.6	349.7	322.6	374.1	412.1
40	271.1	37/3.05	21.38	2148.1	349.7	322.6	382.3	420.2
63	427.0	37/3.83	26.83	3383.2	550.8	508.1	589.3	649.0
