2000V Type W Mining Cable

Type W cable is suitable for use in mining machines, locomotives, power supply lead on A.C. welders, motor leads, generator leads and grounding cable.

Categories：

Mining Cable

Email：info@zmlcable.com

（EPR Insulated Portable Mining Cable, Type W）
Type W cable is suitable for use in mining machines, locomotives, power supply lead on A.C. welders, motor leads, generator leads and grounding cable.

Features：
Nominal voltage：600V/2000V.
Number of the conductors: 1-core~5-core
Flexible rope stranded, tin-coated copper conductor
Ethylene-propylene rubber (EPR) insulation
Heavy duty two layers of black neoprene or Hypalon, with reinforcement braid of rayon fiber cord between the layers.
Max permissible continuous operating temperature of conductor shall not exceed 90°C.
Meets or exceeds industry requirements of ASTM B-172 and ASTM B-33, ICEA S-68-516, NEMA WC-8 or other standards required by customers.

Construction：
1-core: The flexible rope stranded, tin-coated copper conductor is insulated with ethylene-propylene rubber (EPR) and sheathed with heavy duty two layers of black neoprene or Hypalon, with reinforcement braid of rayon fiber cord between the layers.
Multi-core: The tin-coated copper conductor is insulated with ethylene-propylene rubber (EPR). Two to five conductors are cabled together with extruded rubber fillers and sheathed with heavy duty two layers of black neoprene or Hypalon, with reinforcement braid of rayon fiber cord between the layers.

Application：
Type W cable is suitable for use in mining machines, locomotives, power supply lead on A.C. welders, motor leads, generator leads and grounding cable.
Rated Voltage：600V/2000 V
Operating Temperature: Max permissible continuous operating temperature of conductor shall not exceed 90°C.
Bending Radius: 6D, D = Actual outer diameter of cable (mm)
Standard： ASTM B-172 and ASTM B-33, ICEA S-68-516, NEMA WC-8 or other standards required by customers.
Packing：Steel/wooden reel, wooden reel or steel reel.

Type, Description and Supply Range：

Type

Description

Supply Range

Type W tin-coated conductor EPR insulated heavy duty two layer Hypalon or neoprene sheathed mining cable

1-core

3-core

2-core, 4-core, 5-core

8 to 4/0 AWG

250 to 1000MCM

8 to 4/0 AWG

250 to500MCM

8 to 4/0 AWG

EPR Insulated Portable Mining Cable, Type W, 1-core：

No. of cores	Size	No. of Strands	Approx. Overall Diameter	No. of cores	Size	No. of Strands	Approx. Overall Diameter
No. of cores	AWG or MCM	No. of Strands	inch	No. of cores	AWG or MCM	No. of Strands	inch
1	8	133	0.44	1	4/0	427	0.93
1	6	259	0.51	1	250	427	1.03
1	4	259	0.57	1	350	427	1.15
1	2	259	0.66	1	500	427	1.31
1	1	259	0.74	1	600	427	1.40
1	1/0	259	0.77	1	750	703	1.58
1	2/0	259	0.82	1	1000	1159	1.76
1	3/0	427	0.87	1	---	---	---

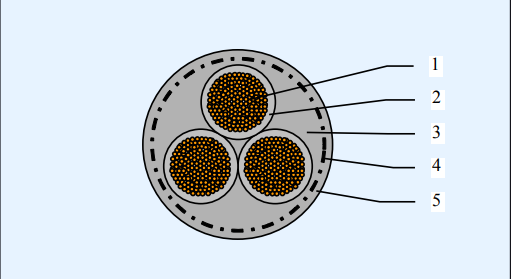

Portable Mining Cable, TypeW：

• Tin-coated copper conductor
• EPR insulation
• Extruded rubber filler
• Rayon cord braid reinforcement
• Neoprene or Hypalon sheath

EPR Insulated Portable Mining Cable, Type W：

No. of Cores	Size	No.of Strands	Approx. Overall Diameter	No.of Cores	Size	No. of Strands	Approx. Overall Diameter
No. of Cores	AWG or MCM	No.of Strands	inch	No.of Cores	AWG or MCM	No. of Strands	inch
2	8	133	0.81	3	350	427	2.68
2	6	259	0.93	3	500	427	3.03
2	4	259	1.08	4	8	133	0.99
2	2	259	1.27	4	6	259	1.10
2	1	259	1.44	4	4	259	1.27
2	1/0	259	1.52	4	2	259	1.48
2	2/0	259	1.65	4	1	259	1.68
2	3/0	427	1.77	4	1/0	259	1.79
2	4/0	427	1.92	4	2/0	259	1.93
3	8	133	0.91	4	3/0	427	2.07
3	6	259	1.01	4	4/0	427	2.26
3	4	259	1.17	5	8	133	1.07
3	2	259	1.34	5	6	259	1.21
3	1	259	1.51	5	4	259	1.40
3	1/0	259	1.65	5	2	259	1.61
3	2/0	259	1.75	5	1	259	1.88
3	3/0	427	1.89	5	1/0	259	1.96
3	4/0	427	2.04	5	2/0	259	2.13
3	250	427	2.39	5	3/0	427	2.26
3	300	427	2.56	5	4/0	427	2.46
